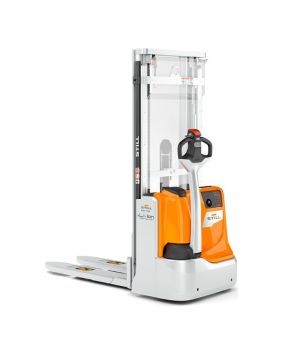

High lift truck EXV 10-16C
₱1.00₱0.01
Something special is happening with the EXV pedestrian pallet truck and its unique OptiSpeed tiller. The speed of this hand-operated warehouse aid automatically adjusts to the distance between the operator and the vehicle. It starts with the unique tiller ergonomics: its thoughtfully positioned controls allow for intuitive one-handed operation for both large and small hands, regardless of whether you're left- or right-handed. The LED display integrated into the tiller head provides all relevant vehicle information at a glance. Thanks to the optional initial lift, the EXV can even overcome uneven floors. For situations requiring extra speed, it can be equipped with a wheel extension to transport two pallets simultaneously. And with the EXV, you can store and retrieve more goods in tight spaces than ever before: its high residual load capacity and exceptional maneuverability make this compact pallet truck unbeatable when it comes to moving large quantities of goods quickly and safely in confined spaces with a hand-operated device – whether in the warehouse entry zone or on high-bay racking.
Advantages
Optimal use of storage space: High storage compaction through high residual load-bearing capacities
OptiSpeed ensures safety: Driving speed adjusts to the drawbar angle.
High pallet throughput: Fast work due to compact dimensions
Pallet Truck
Pedestrian-operated pallet truck with lifting heights of up to 5.4 meters and an intuitive multifunction display. Its unique OptiSpeed tiller automatically adjusts the speed to the tiller angle, ensuring maximum safety and efficiency in every situation. Combined with a robust design and outstanding energy efficiency, it is ready for the toughest applications in the tightest spaces.
Battery voltage | 24 volts |
|---|---|
Driving speed with/without load | 6 km/h |
Total width | 800 mm |
basic load-bearing capacity | 1600 kg |
Swivel casters | Solid rubber |
Nominal stroke | 5466 mm |
Model overview
Model | maximum load capacity (kg) | maximum lifting height (mm) | Driving speed (km/h) | Battery voltage (V) |
|---|---|---|---|---|
EXV 10(i)C / Li-Ion | 1,000 | 4,686 | 6.0 | 24 |
EXV 12(i)C / Li-Ion | 1,200 | 4,686 | 6.0 | 24 |
EXV 14(i)C / Li-Ion | 1,400 | 5,466 | 6.0 | 24 |
EXV 16(i)C / Li-Ion | 1,600 | 5,466 | 6.0 | 24 |
