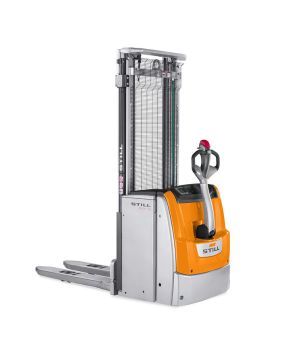

High lift truck EXV 14-20

₱1.00₱0.01

Stronger and smarter than all the rest – that's the EXV 14-20 pedestrian stacker from STILL. It scores points with its enormous residual load capacity and clever color display. The latter provides the operator with essential information, vehicle status, and battery charge level at a glance, while various language-independent symbols offer optimal support during operation. This smart and extremely maneuverable warehouse organizer moves pallets weighing up to 2,000 kg quickly, safely, and reliably. Thanks to its powerful, low-maintenance motor and responsive controls suitable for both left- and right-handed users, you achieve unparalleled pallet handling. But the letters EXV stand not only for fast, but also for safe material handling. The optional load capacity indicator and Dynamic Load Control demonstrate the possibilities. The angled tiller design and sensitive impact switch protect the operator, and the EXV stops automatically when the tiller is released – even on ramps. Thanks to the OPTISPEED tiller, the EXV's speed automatically adjusts to the distance to the operator, while the Curve Speed ​​Control system regulates the speed when cornering. With this powerful yet intelligent high-lift pallet truck, you always have complete control over the flow of goods, from transporting loads in the warehouse entry zone to operating racks – with guaranteed safety.

Advantages

  • Optimal use of storage space: high storage compaction through maximum residual load-bearing capacities

  • Always everything in view: Color display with many language-independent symbols shows all important functions at a glance.

  • Always available: Battery capacities of up to 375 Ah and Li-Ion technology enable long operating times.

Pallet Truck

Stronger and smarter than all the others – that's the EXV 14-20 pedestrian stacker from STILL.

battery

Lead-acid or Li-ion

Battery voltage

24 volts

Driving speed with/without load

6 km/h

basic load-bearing capacity

1,400 - 2,000 kg

Nominal stroke

Max. 4,026 - 6,066 mm

Model

maximum load capacity (kg)

maximum lifting height (mm)

Driving speed (km/h)

Battery voltage (V)

EXV 14 / Li-Ion

1,400

6,066

6.0

24

EXV 14i / Li-Ion

1,400

6,066

6.0

24

EXV 14D

1,400

6,066

6.0

24

EXV 16 / Li-Ion

1,600

6,066

6.0

24

EXV 16i / Li-Ion

1,600

6,066

6.0

24

EXV 16D

1,600

6,066

6.0

24

EXV 20 / Li-Ion

2,000

4,026

6.0

24

EXV 20i / Li-Ion

2,000

4,026

6.0

24

EXV 20D

2,000

4,026

6.0

24
