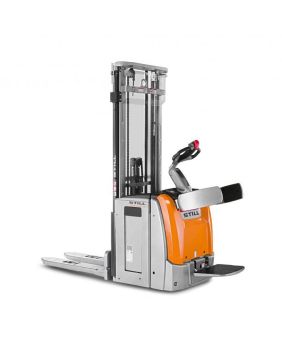

High lift truck EXV-SF 14-20

₱1.00₱0.01

The EXV-SF high-lift pallet truck is incredibly fast, powerful, and exceptionally intelligent. With its platform and side guards extended, it accelerates to a top speed of 10 km/h and moves pallets weighing up to 2,000 kg in record time. Thanks to its enormous residual load capacity, it can also store a particularly large amount of pallets at exceptional heights – depending on the mast, storage heights of well over five meters are easily achievable. This smart warehouse organizer is also the only high-lift pallet truck to date with an informative color display. In addition to displaying essential information such as the battery charge level, numerous language-independent symbols facilitate optimal operation of this powerful pallet truck. Combined with the powerful, low-maintenance motor and the sensitive controls suitable for both right- and left-handed operators, you'll achieve pallet handling performance that is second to none. For optimal operator safety, features include the optional load capacity indicator, standard speed reduction in curves, and the optional combination tiller, which allows the EXV-SF to be easily turned and maneuvered even in confined spaces. With the powerful and intelligent EXV-SF high-lift pallet truck, you always have complete control over the flow of goods, from transporting loads in the warehouse entry zone to accessing racking – thanks to the standing platform, even over long distances.

Advantages

  • Optimal use of storage space: High storage density through maximum residual load-bearing capacities

  • Protects your back: The air-cushioned standing platform can be adjusted to the individual rider's weight.

  • Always everything in view: Color display with many language-independent symbols shows all important functions at a glance.

  • High throughput thanks to very high driving speeds of up to 10 km/h

Pallet Truck

The EXV-SF high-lift pallet truck is incredibly fast, extremely powerful, and exceptionally intelligent.

Battery voltage

24 volts

Driving speed with/without load

10 km/h

basic load-bearing capacity

1,400 - 2,000 kg

Nominal stroke

4,026 - 6,066 mm

Model

maximum load capacity (kg)

maximum lifting height (mm)

Driving speed (km/h)

Battery voltage (V)

EXV-SF 14 / Li-Ion

1,400

6,066

10.0

24

EXV-SF 14i / Li-Ion

1,400

6,066

10.0

24

EXV-SF 14 D / Li-Ion

1,400

6,066

10.0

24

EXV-SF 16 / Li-Ion

1,600

6,066

10.0

24

EXV-SF 16i / Li-Ion

1,600

6,066

10.0

24

EXV-SF 16 D / Li-Ion

1,600

6,066

10.0

24

EXV-SF 20 / Li-Ion

2,000

4,026

10.0

24

EXV-SF 20i / Li-Ion

2,000

4,026

10.0

24

EXV-SF 20 D / Li-Ion

2,000

4,026

10.0

24
