The SXV-CB is the reliable all-rounder for a wide range of applications. This electric forklift is very compact and, thanks to its excellent weight distribution and automatic speed reduction when cornering, exceptionally stable. With its narrow aisle width and small turning radius, it is also extremely maneuverable, even in confined spaces. It effortlessly lifts up to 1,000 kilograms on cantilevered forks. The SXV-CB is intuitive to operate and, thanks to its speed-sensitive steering, can be controlled precisely and efficiently with minimal effort. An optional second control panel can be integrated for particularly comfortable reverse driving. This allows for both forward and reverse operation with two hands, without requiring significant body twisting.

Speaking of comfort: drivers love the SXV-CB for its ergonomic design, which guarantees fatigue-free load handling. This is ensured by the comfortable standing workstation with ample freedom of movement, the padded backrest, the low entry height of just 120 mm on both sides, and the ergonomic controls and operation that require no change in hand position. The unobstructed all-around view of the work environment and the load also contributes to the high level of working comfort – and safety. Because where the driver can effortlessly keep everything in view, driver, surroundings, load, and vehicle are well protected. The robust protective roof also contributes to safety, while the optionally configurable warning lights enhance visibility in warehouse traffic. The SXV-CB is therefore the answer to many classic warehouse organization challenges and your powerful and flexible partner for stacking, transporting, order picking, and loading/unloading.

Versatile all-rounder:

High stability in compact dimensions, intuitive operation and excellent availability ensure a wide range of applications.

Maneuverability in tight spaces:

Small turning radius and narrow aisle width

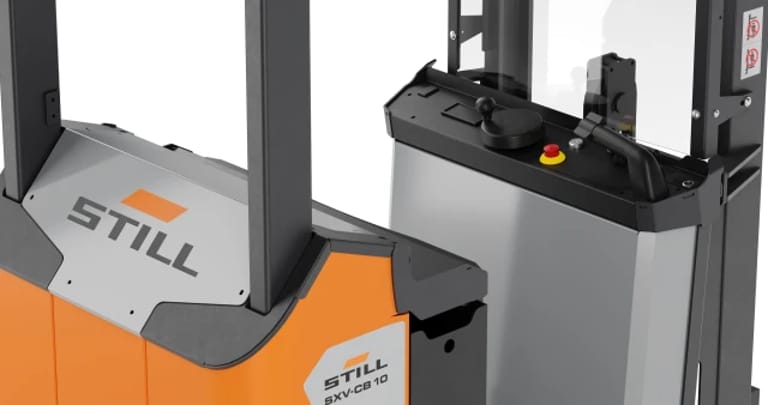

Ergonomic workplace:

Comfortable driver's seat and fatigue-free load handling thanks to speed-dependent steering without changing hand position

Details

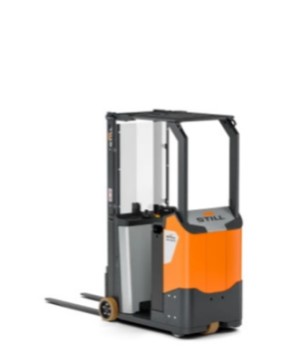

Electric Forklift Truck

SXV-CB 10

Flexibility meets innovation

Load capacity 1000 kg

Lifting height   5380 mm

Speed                12 km/h

Simply easy

Fatigue-free operation:
Smooth and precise electric steering.

Unobstructed view while driving:
Unobstructed view lifting mast .

Precise control in confined spaces:
Sensitive proportional valve control and optional creep speed function.

Simply powerful

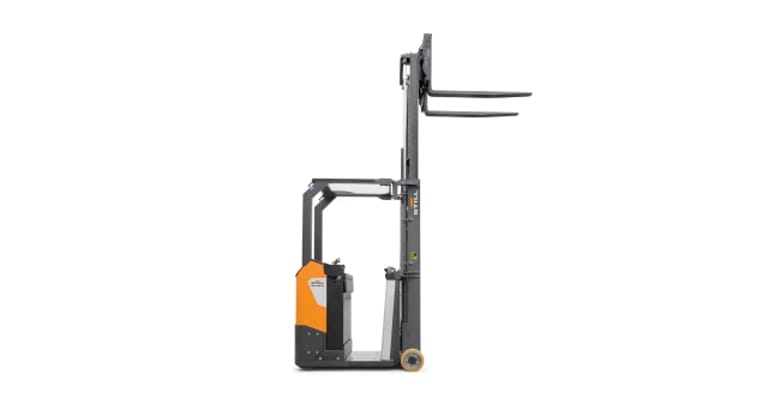

Optimize storage space:
High lifting heights and residual load capacities.

The right driving program for every situation:
Maximum efficiency or maximum throughput thanks to ECO, BOOST or Blue-Q.

Maximum throughput:
Powerful, reliable and low-maintenance three-phase drive motor.

Always ready for use:
Battery with a capacity of 300 Ah to 500 Ah and easy side battery replacement.

Simply safe

OptiSpeed ​​drawbar
automatically adjusts speed depending on the driver's distance from the vehicle

. Safe cornering:
Curve Speed ​​Control automatically adjusts speed in curves according to the steering angle.

Simply flexible

For all pallet types:
Adjustable forks enable the handling of a wide variety of pallets.

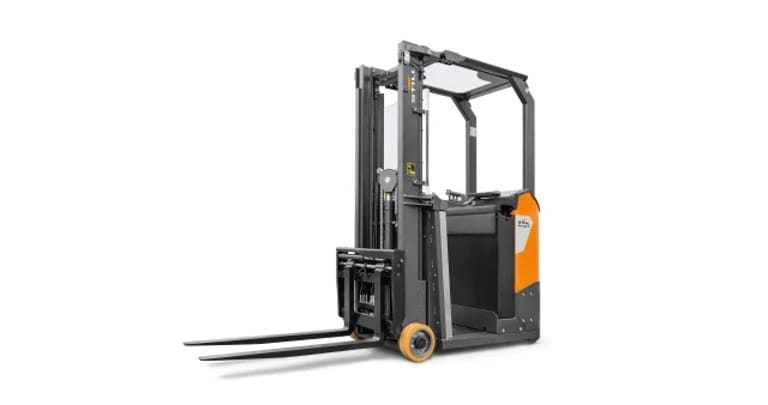

For all load carriers:
Thanks to cantilevered forks, even closed load carriers can be easily picked up.

Individually expandable:
Up to two additional hydraulic functions for attachments.

Simply connected

Manage online:
With FleetManager, you link the vehicle to a web-based application.

Suitable for multiple drivers:
Define multiple users of a vehicle with different driving profiles

. Control over all vehicles:
Demand-oriented fleet analysis using complete data.

Information at a glance:
The modern color display is clearly laid out.

Model overview

Model	maximum load capacity (kg)	maximum lifting height (mm)	Driving speed (km/h)	Battery voltage (V)
SXV-CB 10	1000	5380	12	24
